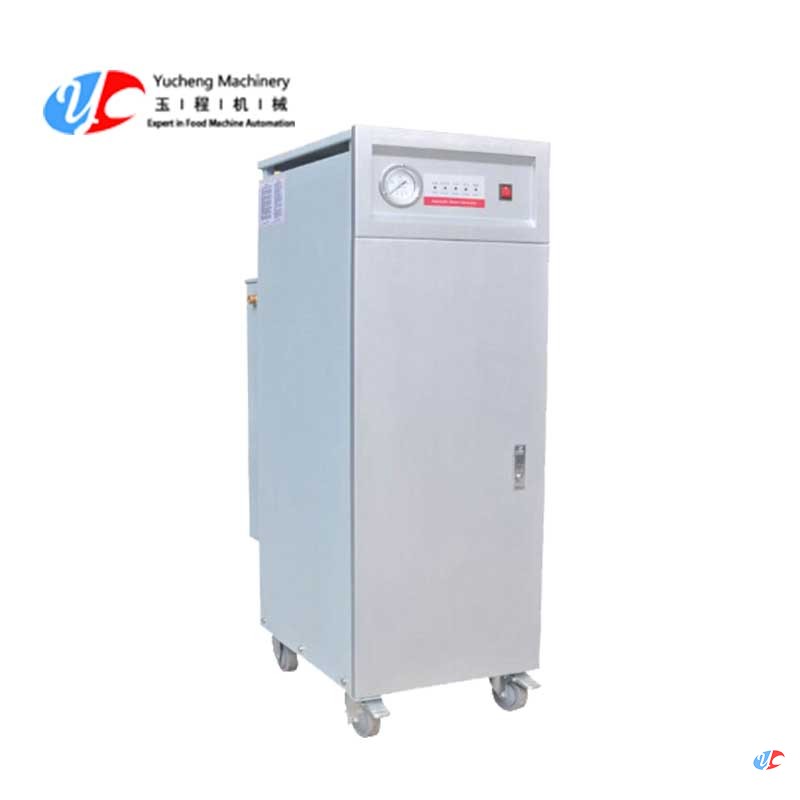

Steam Generator

额定电功率 Electric power(KW) : 24KW

额定蒸发量 Rated evaporation(Kg/h): 30KG/H

电源电压 Source voltage(V): 380V 50Hz

额定工作压力 Rated pressure(MPa): 0.7Mpa

饱和蒸汽温度 Steam temperature(c): 150℃

电源线截面积 Power wire(mm)：10mm

外形尺寸 Dimension(mm)LWH：670*470*1280mm

蒸汽管口径 Steam caliber(mm): DN15

排污管口径 Drain outlet caliber(mm): DN15

进水管口径 Water inlet caliber(mm): DN15

产品重量 Weight(kg):120KG

Machine Features:

1.The unique internal structure design that exempts the use certificate of the boiler

The water volume of this series of products is less than 30L, and within the scope of the country's exemption from applying for a boiler use certificate, that is, there is no need to apply for a boiler use certificate. The furnace is equipped with a built-in steam-water separator, which can effectively reduce the water content of the steam and improve the quality of the steam;

2. Fully automatic computer welding liquid crystal display intelligent electronic control system

The boiler operating system is fully automatic control, and the welding of the circuit board is computer welding, which is more stable and reliable than traditional manual welding. All operating status can be seen at a glance on the LCD screen. You can observe the working status of the boiler electric heating tube, boiler water level status, steam pressure status, water pump operation status, fault alarm status, etc. on the display screen. The timing control of the four time periods is more convenient, allowing you to grasp the boiler operating status at any time , use more at ease;

3. Use high-quality parts

a. High-quality electric heating tube: the electric heating tube is made of high-quality thick-walled 316L stainless steel tube, and its service life is far longer than that of commonly used 304 stainless steel tube. Ensure the service life of the electric heating tube; in addition, the electric heating tube is connected with the furnace body and the flange, which is convenient for replacement, repair and maintenance;

b. High-quality electrical accessories: The electrical appliances are domestic well-known electrical appliances, which are safe and reliable;

c. High-quality pipeline connection: All pipelines inside the equipment are connected with instruments and meters by copper pipes, which are anti-corrosion and anti-rust;

4. Multiple chain safety protection functions

The product is equipped with overpressure protection such as safety valve and pressure controller to prevent the boiler from explosion accidents caused by excessive pressure; at the same time, it has limit low water level protection. When the water supply stops, the boiler will automatically stop working, preventing the boiler from dry burning. The electric heating element is damaged or even burnt out; the leakage protector makes the safety of operators and equipment more secure;

5. Professional equipment quality inspection is safer

All the liner welds of the products leave the factory after passing the X-ray flaw detection inspection and hydraulic test, which is safe and has no hidden dangers;

6. Easy to install and use

The products have passed strict debugging before leaving the factory. The user only needs to connect the power supply and water source, press the start button, and the boiler can enter the fully automatic operation state, without complicated installation;

7. Scientific design, exquisite appearance

The scientific design style of the cabinet is adopted, the internal design structure is reasonable, and the maintenance is extremely convenient. The boiler shell adopts CNC cutting and CNC folding one-time forming process, with fine workmanship; the surface of the shell is treated with high-temperature spray plastic, which is durable and beautiful in appearance;

8. The use of electric energy is more environmentally friendly and economical

Electric energy is absolutely non-polluting, and it is more environmentally friendly than other fuels. The use of off-peak electricity can greatly save the operating cost of equipment. It is a good choice for energy saving and environmental protection.
