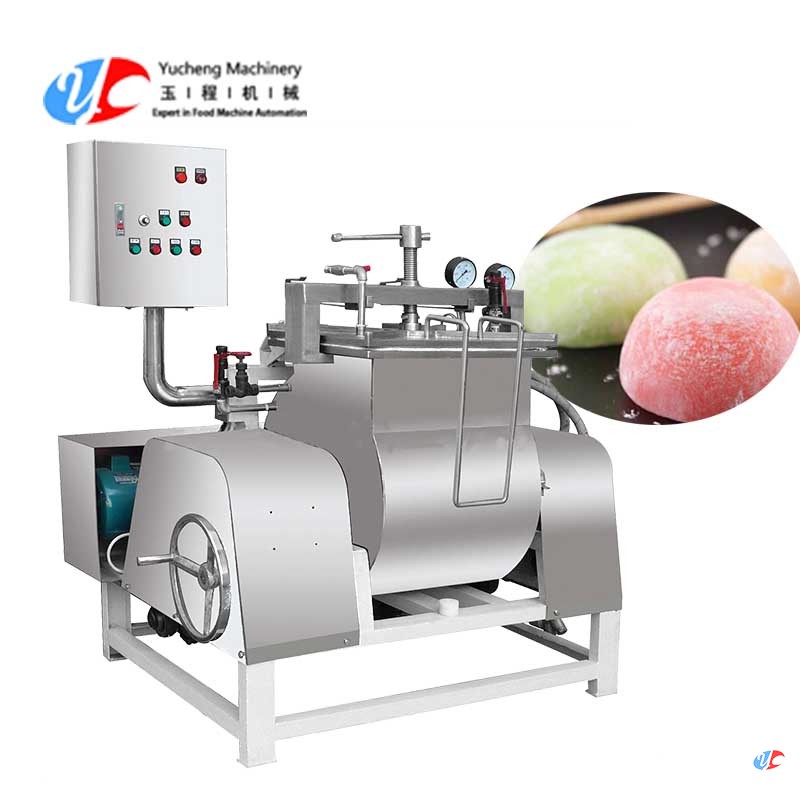

Mochi Dough Steamer

1.Application:

 This equipment is mainly suitable for stirring, steaming, shearing and processing mature materials such as cakes, rice cakes, glutinous rice flour and flour.

2. Main technical parameters:

a. Capacity: 150L/h

b. Main speed: 35r/min

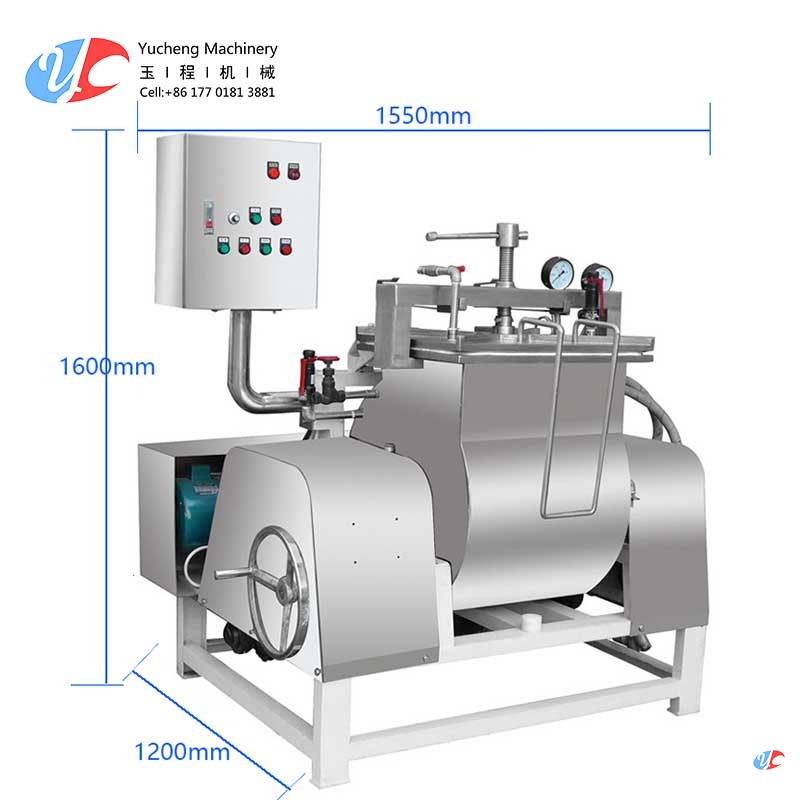

c. Dimensions: (L*W*H) 1550*1200*1600mm

3. Features:

a. This equipment uses stainless steel hexagonal rods as stirring paddles, and there are fixed paddles at the bottom of the barrel. When rotating, the stirring paddles and the fixed paddles produce shearing and extrusion effects on the materials, so that the molecular structure of the materials is better protected. Moreover, during the stirring process, steam heating is used while stirring, so that the materials are mixed and the maturity is uniform.

b. This equipment adopts cycloidal pinwheel reducer and manual worm wheel and worm unloading, with low noise, stable and flexible transmission and long service life.

c. This equipment is used for the steam volume of 1 bar, which is energy-saving, safe, and can better protect the toughness of materials.

4. Use and maintenance:

a. Before use, clean the inner barrel and stirring paddle with boiling water, and fill lubricating oil in each lubricating part.

b. Before use, be sure to check all valves, pressure gauges and pipelines. When running, is there any noise and is it stable?

c. Before use, the inner barrel and the mixing paddle should be cleaned and disinfected.

d. When using, pay special attention to whether there is any abnormal sound in the chain drive. If there is abnormal sound, stop using it immediately, check whether the transmission part is loose, and use it after normal adjustment.

e. It is strictly forbidden to pour the blocky hard material and the rest of the next day's hard block into the barrel, so as not to damage the machine.

f. After the daily processing is completed, there shall be no remaining material in the barrel.

g. The lubricating oil of the reducer is replaced every six months, and the oil cup is filled once a week.

5. Circuit:

a. The machine adopts automatic timing stirring, alarm reminds when the time comes, and jogs the material for easy operation.

b. If a frequency converter is installed, after the starting power is turned on, in order to prolong the service life of the frequency converter, please press the start and stop buttons to stop production and then press the power stop button
